10. Recover Cleartext Document¶

Difficulty: 🎄🎄🎄🎄🎄

📜 Info & Hints¶

Recover Cleartext Document

The Elfscrow Crypto tool is a vital asset used at Elf University for encrypting SUPER SECRET documents. We can't send you the source, but we do have debug symbols that you can use.

Recover the plaintext content for this encrypted document. We know that it was encrypted on December 6, 2019, between 7pm and 9pm UTC.

What is the middle line on the cover page? (Hint: it's five words)

For hints on achieving this objective, please visit the NetWars room and talk with Holly Evergreen.

Watch> Reverse Engineering

https://youtu.be/obJdpKDpFBA

What is the middle line on the cover page?

⚡️ Solution¶

Download the files:

Understanding the application:¶

The executable is a windows program, You will need to test it on windows machine.

Testing on Linux machine

You can use wine package to test the executable on Linux machine.

sudo apt-get install wine-stable

For more info go to https://www.winehq.org/

Running the executable:

.\elfscrow.exe

Welcome to ElfScrow V1.01, the only encryption trusted by Santa!


* WARNING: You're reading from stdin. That only partially works, use at your own risk!

** Please pick --encrypt or --decrypt!

Are you encrypting a file? Try --encrypt! For example:

  elfscrow.exe --encrypt <infile> <outfile>

You'll be given a secret ID. Keep it safe! The only way to get the file
back is to use that secret ID to decrypt it, like this:

  elfscrow.exe --decrypt --id=<secret_id> <infile> <outfile>

You can optionally pass --insecure to use unencrypted HTTP. But if you
do that, you'll be vulnerable to packet sniffers such as Wireshark that
could potentially snoop on your traffic to figure out what's going on!

So we have --insecure to use unencrypted HTTP .. interesting.

Encryption:

Try to encrypt a test text file with the elfscrow tool to see how it works.
```
.\elfscrow.exe --encrypt  unencrypted.txt encrypted.txt.enc
```
1. The app created a Seed which is look like a timestamp 1578688947. Try to change it to human readable text and it will give your the time you run the app.
2. Generated an encryption key e8ecf939324a688e with length of 8 bytes using the seed.
3. Sent the key encryption key to https://elfscrow.elfu.org/api/store
4. Returned a1bc0ffb-2a49-42f4-9427-575ccb17dfdb which is a unique uuid by it's format.
Decryption:

Try to decrypt the file you just encrypted to see how it works.
```
.\elfscrow.exe  --decrypt --id=<secret_id> encrypted.txt.enc decrypted.txt
```
Replace <secret_id> with id you got when encrypted the file.
1. The app retrieve the key from: https://elfscrow.elfu.org/api/retrieve using secret_id.
2. Then decrypted the file using the key.
Monitoring the network connections:

Now try to encrypt/decrypt the file with option --insecure to use unencrypted connection to the api, So we can monitor and analysis the traffic and verify our findings.
1. Open Wireshark or similar apps to monitor the network traffic and start monitoring the traffic:
2. Run Encryption command
```
.\elfscrow.exe --insecure --encrypt unencrypted.txt encrypted.txt.enc
```

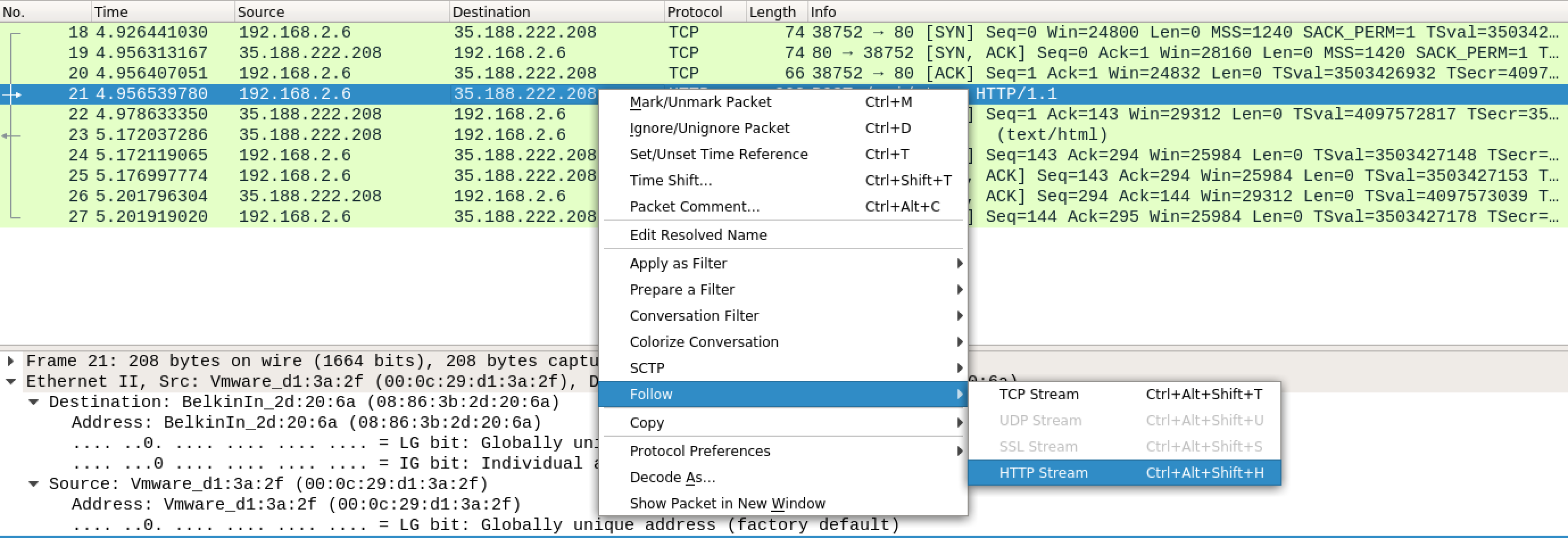

  Then follow HTTP stream to read the POST request headers and body

  The app send encryption key using POST request to the api

  The server respond with uuid
3. Run Decryption command
```
.\elfscrow.exe --insecure --decrypt --id=<secret_id> encrypted.txt.enc decrypted.txt
```
  > Replace <secret_id> with id you got when encrypted the file.

  Then follow HTTP stream to read the POST request headers and body

  The app send uuid using POST request to the api

  The server respond with decryption key
4. Let's try to send correct/wrong data to the api to check the errors:

  You can use apps like Postman , Insomnia to easily play with HTTP requests.

  Let's start with storing the key: send an empty POST request to the api https://elfscrow.elfu.org/api/store

  Invalid key

  must be 16 hex characters (8 bytes)

  If you send the correct keyformat you get the uuid

  Then try to retrieve the key : send an empty POST request to the api https://elfscrow.elfu.org/api/retrieve

  Bad identifier

  must be a UUID

  If you send the correct uuid format you get the key

Debug the application:¶

In order to decrypt the file we either we have the uuid which is unique and randomly generated to get the key from the api.

or regenerate the key and decrypt the file. For this we need the following:

seed which is time based and from the hint we know the time range December 6, 2019, between 7pm and 9pm UTC.
Key generation function.
Encryption function.

Let's start with looking at the program binary to find how the key is generated and the file encryption process.

8 bytes Key

A key with a fixed length - 7 or 8 bytes usually used fo DES

You will need windows machine and debugging program like Ghidra or IDA

Windows Virtual Machine

You can grab a copy on a Windows 10 a virtual machine from here.
https://developer.microsoft.com/en-us/windows/downloads/virtual-machines

Open the binary in IDA

And make sure to load debug information from .pdb file
Select _main function from left panel and Switch to text view:

You can scroll down and start reading to find the functions and debugging information.

Also we can check functions directly from left panel, We have interesting functions:
```
time
super_secure_srand(int)
super_secure_random(void)
generate_key(uchar * const)
do_encrypt(int,char *,char *)
do_decrypt(int,char *,char *,char *)
store_key(int,uchar * const)
retrieve_key(int,uchar * const,char *)
```
Let's start with generate_key function:
1. It calls time and then time returns its return value in EAX then they use EDX as a parameter seed
2. Then calls super_secure_srand(int) function with seed as input_std
3. Do 8 loops for super_secure_random(void) with value from super_secure_srand and each loop it just getting one random byte
4. Return the generated key.
Immediately we see the key is based on time and is based on srand.¹
Check super_secure_srand function:

We can lookup the function by searching it's name or from the talk
```
void srand(int x) {
   seed = x;
}
```
Check super_secure_random function:

Convert the hex values to numeric:

We can lookup the function by searching this values or from the talk
```
int rand() {
  return seed = (seed * 214013 + 2531011) & 32767;
}
```
Now we can easily generate the key.
Check encryption function
1. Get generated the key as mentioned
2. Encrypt using DES-CBC algorithm which confirmed by the key length.
3. Send the key to the api using store_key function
Check decryption function
1. Retrive the key from the api using retrieve_key function
2. Decrypt using DES-CBC algorithm which confirmed by the key length.

Decrypting the file¶

We will use python to:

Recreate the keys in the time frame December 6, 2019, between 7pm and 9pm UTC.
Decrypt the file.
Check if the file is not corrupted.

Let's begin:

Create our time converter to unix, set it as our seed:

from datetime import datetime

# December 6, 2019, between 7pm and 9pm UTC.
start_time = '2019-12-06-19-00-00-+0000'
end_time = '2019-12-06-21-00-01-+0000'


def totimestamp(t):
    t = datetime.strptime(t, '%Y-%m-%d-%H-%M-%S-%z')
    t = datetime.timestamp(t)
    return int(t)


start_time = totimestamp(start_time)
end_time = totimestamp(end_time)

my_seed = start_time

Generate the key

def my_rand(seed):
    seed = (seed * 214013 + 2531011) & RAND_MAX_32
    return seed


def make_key(seed, size):
    key = ''
    for f in range(size):
        seed = my_rand(seed)
        f_seed = (seed >> 16) & 0xFF
        f_seed = "%02x" % f_seed
        key += f_seed
    return key

Decryption function

from Crypto.Cipher import DES

# Decrypt
def decrypt(ciphertext, key):
    iv = b' ' * 8
    cipher = DES.new(key, DES.MODE_CBC, iv)
    plaintext = cipher.decrypt(ciphertext)
    return plaintext

We set iv to 0 as it's not specified.

Check if the file is PDF or not by searching for pdf at the file beginning:

# check if pdf
def check_pdf(fin):
    if b'pdf' in fin[:1000]:
        return True

Decrypt and check the file is PDF then save it:

def decrypt_file(ciphertext, key, outfile):
    dec = decrypt(ciphertext, key)

    if check_pdf(dec):
        with open( outfile, 'wb') as outt:
            outt.write(dec)
            print('******', outfile, ' is PDF ', '******\n'+
            'Decrypted with key', f_key, 'and key seed',my_seed,'\n'
            'Creation time: ', datetime.utcfromtimestamp(my_seed) )
            exit()

6. With the encrypted file open, Run the script and loop through timestamp range:

with open(in_file, 'rb') as inn:
    cipher_text = inn.read()
    i = 1
    while my_seed < end_time:
        f_key = make_key(my_seed, DES_KEY_SIZE)
        print(i, ' |', datetime.utcfromtimestamp(my_seed) ' | Seed:', my_seed, '| Key:', f_key)
        my_seed += 1
        i += 1

        out_file = f_key + '_' + in_file[:-4]
        ikey = bytes.fromhex(f_key)
        decrypt_file(cipher_text, ikey, out_file)

So the full script will be :

The full script

from Crypto.Cipher import DES
from datetime import datetime

# Generate Key
# December 6, 2019, between 7pm and 9pm UTC.
in_file = 'ElfUResearchLabsSuperSledOMaticQuickStartGuideV1.2.pdf.enc'
start_time = '2019-12-06-19-00-00-+0000'
end_time = '2019-12-06-21-00-01-+0000'


def totimestamp(t):
    t = datetime.strptime(t, '%Y-%m-%d-%H-%M-%S-%z')
    t = datetime.timestamp(t)
    return int(t)


start_time = totimestamp(start_time)
end_time = totimestamp(end_time)

my_seed = start_time
RAND_MAX_32 = 0x7fffffff
DES_KEY_SIZE = 8


def my_rand(seed):
    seed = (seed * 214013 + 2531011) & RAND_MAX_32
    return seed


def make_key(seed, size):
    key = ''
    for f in range(size):
        seed = my_rand(seed)
        f_seed = (seed >> 16) & 0xFF
        f_seed = "%02x" % f_seed
        key += f_seed
    return key


# check if pdf
def check_pdf(fin):
    if b'pdf' in fin[:1000]:
        return True


# Decrypt
def decrypt(ciphertext, key):
    iv = b' ' * 8
    cipher = DES.new(key, DES.MODE_CBC, iv)
    plaintext = cipher.decrypt(ciphertext)
    return plaintext


def decrypt_file(ciphertext, key, outfile):
    dec = decrypt(ciphertext, key)

    if check_pdf(dec):
        with open(outfile, 'wb') as outt:
            outt.write(dec)
            print('******', outfile, ' is PDF ', '******\n'+
            'Decrypted with key', f_key, 'and key seed',my_seed,'\n'
            'Creation time: ', datetime.utcfromtimestamp(my_seed) )
            exit()


with open(in_file, 'rb') as inn:
    cipher_text = inn.read()
    i = 1
    while my_seed < end_time:
        f_key = make_key(my_seed, DES_KEY_SIZE)
        print(i, ' |', datetime.utcfromtimestamp(my_seed) ' | Seed:', my_seed, '| Key:', f_key)
        my_seed += 1
        i += 1

        out_file = f_key + '_' + in_file[:-4]
        ikey = bytes.fromhex(f_key)
        decrypt_file(cipher_text, ikey, out_file)

Install pycrypto python package to be used in decryption :

pip3 install pycrypto

Run the script:

Decrypted with key b5ad6a321240fbec and key seed 1575663651
Creation time:  2019-12-06 20:20:51

Open the file and get the answer:

obj10-23

PDF reader

After decrypting the file, Some reader will not be able to open it because at the file beginning pdf not %PDF.
You can open the file in the browser and it will open normally.

or change the pdf to %PDF at the file beginning.

The Answer

Machine Learning Sleigh Route Finder

Congratulations! You have completed the Recover Cleartext Document challenge! 🎉

🎓 What you've learned¶

Reverse Engineering a binary using IDA.
Monitor and extract data from network connection using Wireshark.
Testing api request/response.
srand , rand functions.
Building decryption script for DES-CBC algorithm.
